Heavy electric casting system
Indoor casting

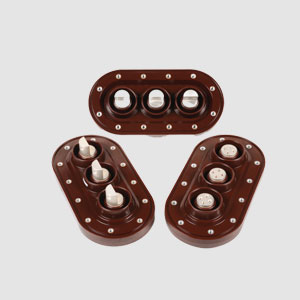

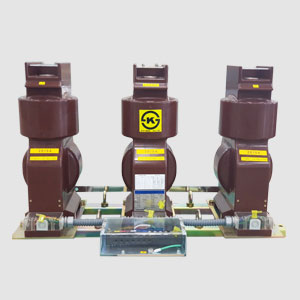

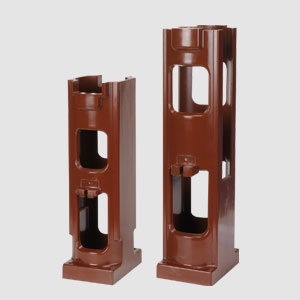

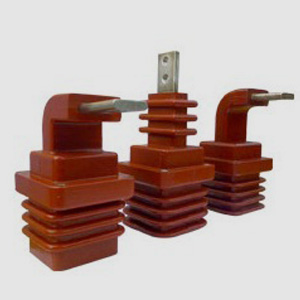

Molding materials for indoor use have excellent electrical properties, mechanical strength, thermal properties and crack resistance. This product is suitable as a molding material for instrument transformers (ct, pt, mof), bushings, switchgear, etc.
| Product Name | Mix Ratio | Viscosity(cps,60℃) | Tg(℃) | Curing condition | Application |
|---|---|---|---|---|---|
| HTS-201 | 100 : 20 | 6,000~12,000(25℃) 40~80(25℃) |
- | (RT x 24h) or (60℃x2h) |
Room temp. curing type Low voltage transformers |
| HTS-201-2 | 100 : 15 | 10,000~20,000(25℃) 50~100(25℃) |
- | (RT x 24h) or (60℃x2h) |
Room temp. curing type LED SMPS |
| HTS-201-3 | 100 : 20 | 35,000~55,000(25℃) 300~600(25℃) |
- | (RT x 24h) or (60℃x2h) |
Room temp. curing type Metal detector |
| HTS-201-4 | 100 : 10 | 5,000~15,000(40℃) 20~60(25℃) |
- | (RT x 24h) or (60℃x2h) |
Room temp. curing type Low voltage BCT |
| HTS-526 | 100 : 100 | 5,000~15,000 25,000~45,000 |
85~95 | (120~130)℃x12h | PT |
| HTS-527-5 | 100 : 100 | 5,000~15,000 20,000~40,000 |
85~95 | (120~130)℃x12h | CT/ PT/ MOF/ Bushing |
| HTS-529 | 100 : 100 | 11,000~22,000 20,000~40,000 |
90~100 | (120~130)℃x12h | High crack resistance High mechanical properties |
| HTS-530 | 100 : 100 | 5,000~15,000 25,000~45,000 |
85~95 | (120~130)℃x12h | CT/ PT/ MOF/ Bushing |
| HTS-530LV | 100 : 100 | 4,000~8,000 5,000~9,000 |
80~90 | (120~130)℃x12h | CT/ PT/ MOF/ Bushing Low viscosity type |
| HTS-620 | 100 : 80 | 30,000~50,000 10,000~25,000 |
115~130 | (120~130)℃x12h | SIS, DAIS SIS, DAIS/Low viscosity type High crack resistance |
| HTS-630 | 100 : 80 | 30,000~60,000 15,000~35,000 |
115~130 | (120~130)℃x12h | SIS, DAIS High thermal & crack resistance |
| HTS-700 | 100 : 20 | 20,000~40,000 200~500(25℃) |
75~90 | (120~130)℃x12h | CT/ PT/ MOF/ Bushing |
| HTF-1500-2 | 100 : 100 | 5,000~15,000 25,000~45,000 |
85~95 | 120℃x 12h | UL Approval (UL File No. E240028) UL94, V-0 grade |
| HTS-1515 | 100 : 20 | 50,000~80,000 100~300(25℃) |
90~100 | (120~130)℃x12h | Insulation Rod High mechanical properties |
| HTC-3000 | 100 : 30 | 15,000~35,000 50~100(25℃) |
130~150 | 140℃x16h | Ultra-high voltage condenser bushing High thermal resistance Excellent impregnation |
| HTS-3000A | 100 : 200 | 10,000~20,000(40℃) 1,000~3,000(40℃) |
- | (120~130)℃x12h | High flexibility High thermal shock resistance |
| HTS-3100 | 100 : 100 | 5,000~15,000 10,000~30,000 |
35~55 | (120~130)℃x12h | Low Tg High thermal shock resistance |
| HTS-3225 | 100 : 100 | 10,000 ~ 20,000 (60℃) 20,000 ~ 30,000 (60℃) |
85 ~ 95 | 130℃ x 12h | High temperature curing Epoxy Low cure shrinkage and stress excellent electrical, mechanical strength and thermal shock resistance |
| HTS-5225 | 100 : 80 | 8,000~12,000(25℃) 1,000~2,000(25℃) |
90~100 | (120~130)℃x12h | CT/ PT/ MOF/ Bushing |
| HTS-5227 | 100 : 100 | 10,000~20,000(40℃) 20,000~40,000(40℃) |
65~75 | (120~130)℃x12h | Low Tg, High crack resistance |
