Heavy electric casting system

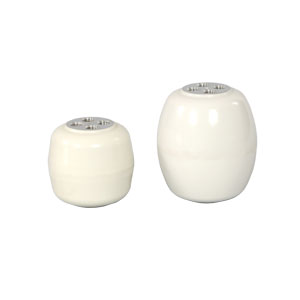

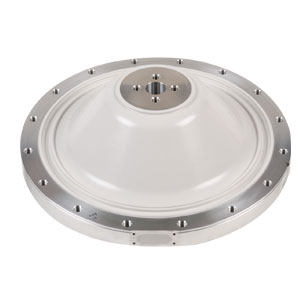

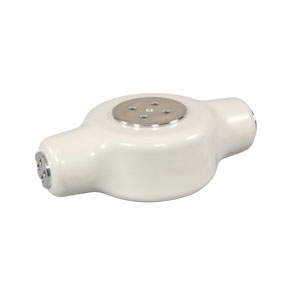

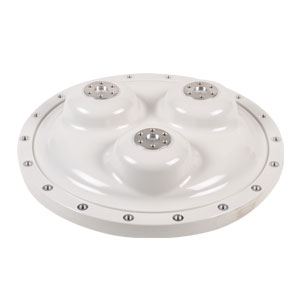

GIS Spacer casting
It has excellent mechanical, electrical and thermal properties. In particular, it has low curing shrinkage and excellent thermal shock resistance, making it suitable as a molding material for large products.
| Product Name | Mix Ratio | Viscosity(cps,60℃) | Tg(℃) | Curing condition | Application |
|---|---|---|---|---|---|
| HTS-5410 (Liquid type, for APG) |
100 : 95 | under 10,000 | 140~150 | 140℃ x 12hr | GIS Spacer(for APG) Excellent electrical and mechanical properties excellent heat resistance |
| HTS-430 HTS-903 (고형수지) |
100 : 40 | Solid / Solid | 105~120 | 140℃x16h | Void-free epoxy resin castings. High mechanical & electrical properties Low cure shrinkage High thermal shock resistance |
| HTS-430 HTS-901 (고형수지) |
100 : 30 | Solid / Solid | 115~130 | 140℃x16h | Void-free epoxy resin castings. High mechanical, electrical & thermal properties Low cure shrinkage High thermal shock resistance |
