Heavy electric casting system

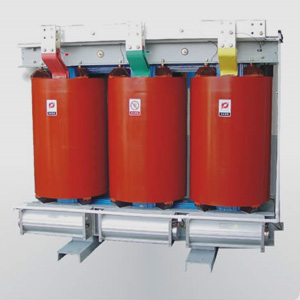

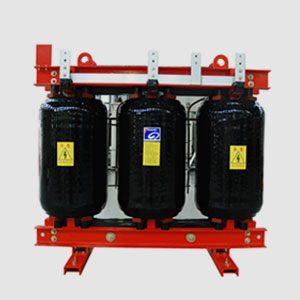

Dry type distribution transformer casting
It has excellent mechanical and electrical properties, especially thermal stability and crack resistance. This product is suitable for molding materials such as dry type disribition transformer, post insulator, bushing, and switch.
| Product Name | Mix Ratio | Viscosity(cps,25℃) | Tg(℃) | Curing condition | Application |
|---|---|---|---|---|---|
| HTS-300R | 100 : 100 : 10 : 1 | 10,000~15,000 | 90~100 | (75℃x8h)+(140℃x8h) | Multi purpose standard system. Excellent crack resistance |
| HTS-300H | 100~300 | ||||
| HTS-300F | 50~150 | ||||
| HTS-300A | 5~15 | ||||
| HTS-340R | 100 : 83 |
2,000~4,000 | 80~90 | (75℃x8h)+(140℃x8h) |
High thermal stability system. |
| HTS-340H | 500~1,500 | ||||
| HTS-380R | 100 : 95 : 15 : 1 |
5,000~15,000 | 60~80 | (75℃x8h)+(140℃x8h) |
High thermal stability, Low viscosity Low Tg, flexibilized system. |
| HTS-380H | 100~400 | ||||
| HTS-380F | 50~150 | ||||
| HTS-380A | 5~15 | ||||
| HTS-200 | 100:30 | 5,000~15,000(40℃) 400~800 |
50~60 | 60℃x2h | Molding for DDT |
| HP-80 | 100:100 | Paste Paste |
60~70 | 60℃x2h | Putty for DDT |
