Heavy electric casting system

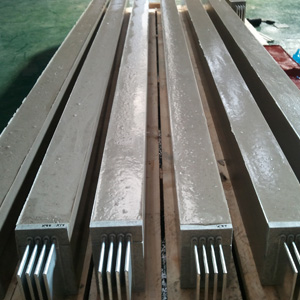

Busbar casting
It is a low-viscosity product that cures at room temperature and medium temperature. High filler loading (max. 80%) is possible, and it has excellent mechanical and electrical properties, crack resistance, and impact resistance, making it suitable for molding materials such as busbars.
| Product Name | Mix Ratio | Viscosity(cps,25℃) | Tg(℃) | Curing condition | Application |
|---|---|---|---|---|---|
| HTS-320 | 100 : 35 | 800~1,200 400~800 |
50~70 | RT x 24h or 60℃ x (4~6)h |
Low viscosity, High filler loading(Max.80%) Flexible & resilient casting, Excellent crack resistance |
