Potting & Molding system
Insulation varnish

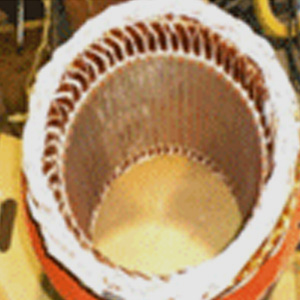

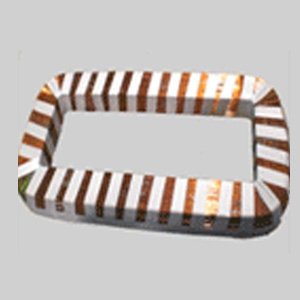

Impregnated insulating varnish has low viscosity, excellent impregnability and workability, and excellent adhesiveness and electrical insulating properties, making it suitable for various impregnated insulating resins.
| Product Name | Mix Ratio | Viscosity(cps,25℃) | Tg(℃) | Curing condition | Application |
|---|---|---|---|---|---|
| HTV-1500 | 100 : 80 | 10,000~15,000 50~150 |
120~130(Tg) | (100℃x2h)+(130℃x3h) | Excellent impregnation, adhesive & electrical insulation |
| HTV-1501 | 100 : 90 | 5,000~10,000 50~150 |
140~150 | (100℃x2h)+(130℃x3h) | Excellent impregnation & thermal resistance |
| HTV-1502 | 100 : 90 | 5,000~15,000 30~70 |
130~140(Tg) | (100℃x2h)+(130℃x3h) | Excellent impregnation & thermal resistance |
| HTV-1505 | 100:100 |
5,000~10,000 60~80 |
150-160(Tg) | (100℃x2h)+(150℃x 4h) | Excellent impregnation & thermal resistance |
| HTV-1701 | 100:20 |
500~1,500 80~100 |
60~ 70(Tg) | 상온 x 24h | Room temp. cure Excellent impregnation & electrical insulation |
| HTV-1705 | 100:50 |
1,000~2,000 150~200 |
70~80 | 60℃ x 2h | Hot cure, Excellent impregnation & electrical insulation |
| HTV-1710 | 100:100 |
100~300 20~30 |
110~120(Tg) | (90℃x2h)+(120℃x 8h) | Low viscosity, Excellent impregnation & electrical insulation |
| HTV-1800 | 100:80 | 5,000~10,000 50~150 |
95~105 | (70℃x12hr)+(120℃x8hr) | excellent impregnation, adhesive, electric insulation |
